Radiata Pine Thermowood Shadow Gap Cladding

MODEL RPTSGC

From £49.99 + VAT
Tax excluded
  • Prime grade: a clearer alternative to our Character grade Redwood Thermowood
  • Thermally modified (Thermo-D) for better stability and durability class 2 above ground
  • Chemical free: modified with heat and water only
  • Dark brown, weathering to grey/charcoal
  • Shadow gap profile gives a clean, linear look
  • Optional end matching for quicker fitting and less waste
  • Suitable for internal and external use
Size (mm): 142 x 20
End Matching: No End Matching
Quantity

TOTAL PRICE FOR THIS ITEM £49.99 +VAT

In Stock

100% Secure Payments

Our Radiata Pine Thermowood Shadow Gap Cladding is shadow gap cladding in Radiata pine Thermowood, for internal and external use.

About Radiata pine Thermowood

Radiata pine, thermally modified to 4–7% moisture content. Dark brown, weathering to grey/charcoal.

New Zealand radiata pine, Prime grade.

The thermal modification uses only heat and water, so the cladding is chemical free.

Profile and fitting

Shadow gap cladding gives a clean, linear look. Boards join with a 36 mm tongue/overlap on a 142 mm board, leaving a 106 mm visible face and a 10 mm recess between boards. Tongue stack 8 / 7 / 5 mm; opposite groove depth 10 mm.

They can be fitted horizontally or vertically; fit horizontal boards tongue uppermost so moisture runs off.

Grades and options

  • Prime grade (all our radiata is Prime).
  • End matching (tongue and groove on the board ends) lets you place joints where they fall rather than on a batten, which speeds up fitting and reduces wastage.

Sizes and pricing

  • 142 x 20 mm (visible face 106 mm, tongue 36 mm): Prime £49.99 / Prime end matched £62.49 per m² ex VAT
  • Supplied in random lengths between 1200 mm and 3600 mm.
  • Set lengths are available for an extra charge using Set lengths (Cladding): surcharge £8.00 per m² ex VAT up to 3500 mm, £12.00 per m² ex VAT above 3500 mm. Add the same number of m² of set lengths as cladding.

Specifications

SpeciesRadiata pine
OriginNew Zealand
ProfileShadow gap
UseInternal and external
Grade(s)Prime
Sizes142 x 20 mm
LengthsRandom 1200–3600 mm (set lengths extra: £8.00 per m² ex VAT up to 3500 mm, £12.00 per m² ex VAT above 3500 mm)
Moisture content4–7% (after thermal modification)
TreatmentThermally modified (heat and water, chemical free)
Finish as suppliedMachined
Priced perm², ex VAT

Finishing and aftercare

No further treatment is needed. To keep the original colour for longer, use a UV Oil or see our cladding treatments.

Drawings and downloads

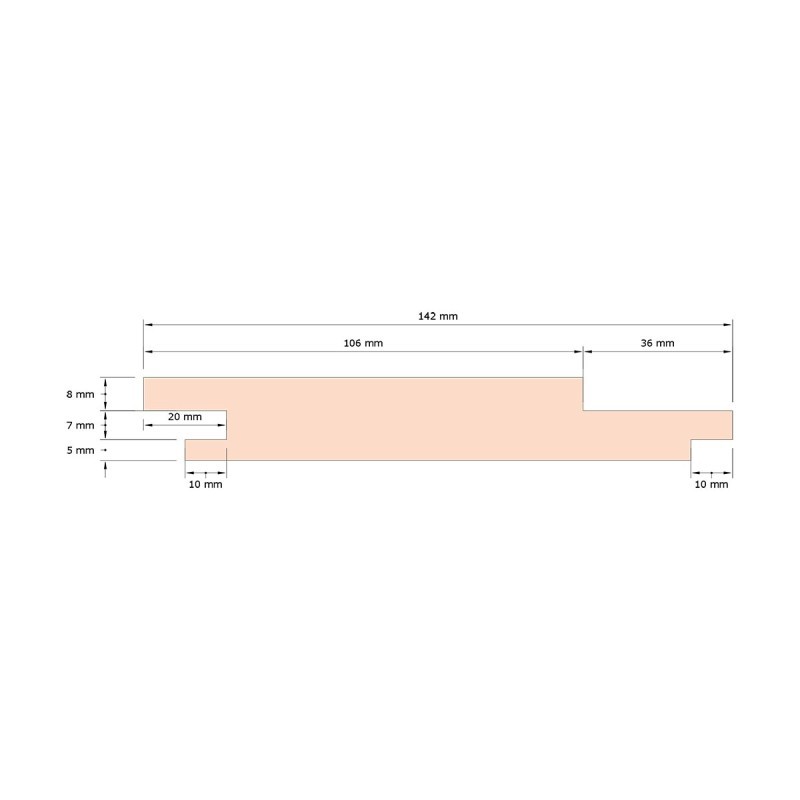

Radiata Pine Thermowood Shadow Gap Cladding profile drawing: 142 x 20 mm board, 106 mm visible face, 36 mm tongue
Tap the drawing to open it full size.

Good to know

  • Natural timber varies: expect some differences in colour and grain from board to board and from the photos.
  • Thermowood can split, so allow an extra 10% on top of your usual wastage. Knots may remain after planing; they don't affect durability.
  • Boards left exposed to changing weather before fitting are likely to cup, warp and split. We suggest fitting between October and April where possible, within 7 to 14 days of delivery.
  • Sizes are nominal and can vary slightly with moisture content.
  • Not sure? Order up to two cladding samples first.
  • Questions? Please contact our Sales Team on 01536 267107.
