Kiln Dried Ash Wood Board on Board Internal Cladding

Our Kiln Dried Ash Wood Board on Board Internal Cladding is board on board cladding in English ash, for internal use.

About English ash

English ash with a light, elegantly rustic look. Boards contain sound knots of varying size, some colour variation, fissures and areas of tight, straight grain, and will expand and contract as they acclimatise.

Ash is not durable outdoors (BS EN 350 class 5), so it is for internal use only.

Profile and fitting

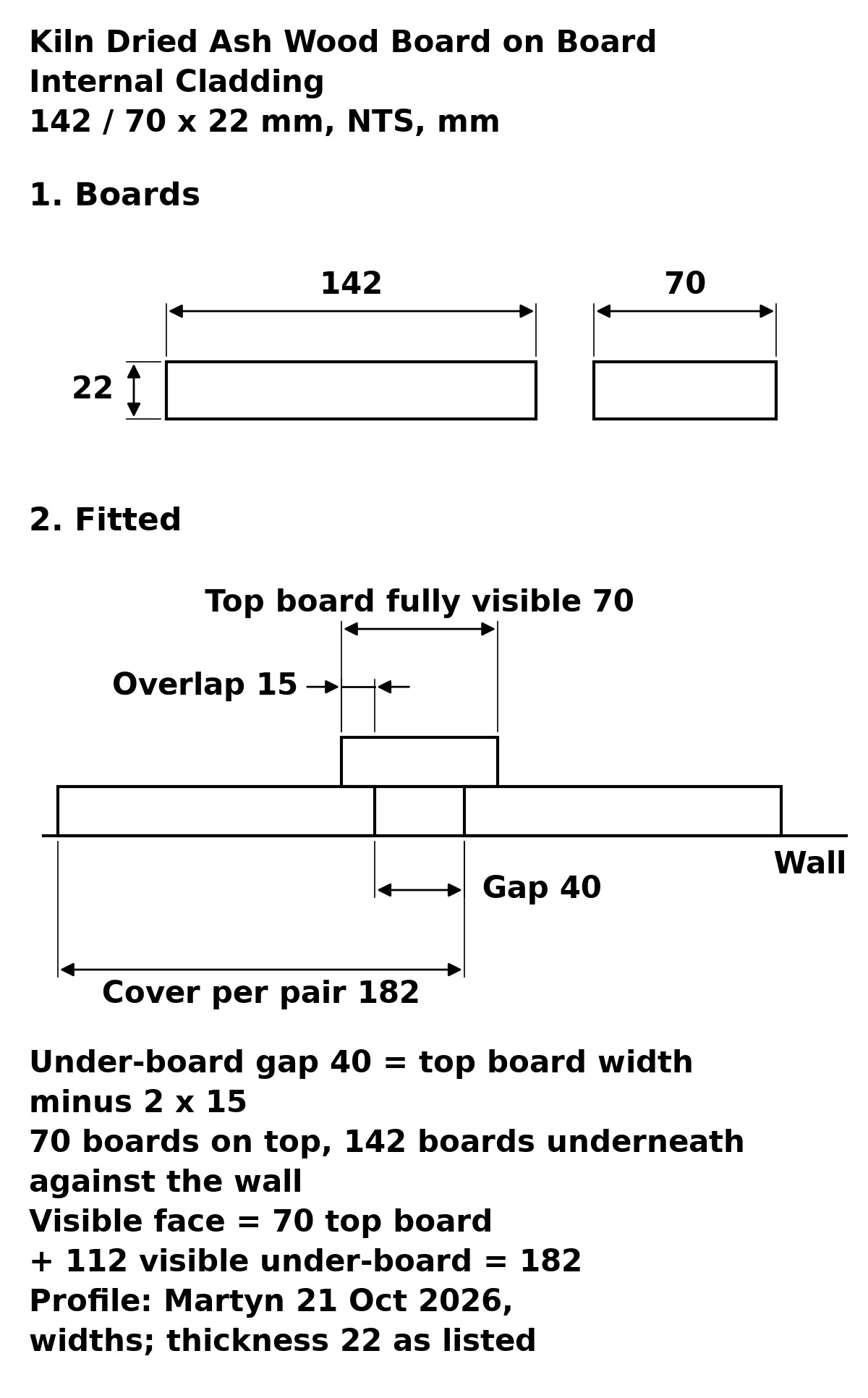

Board on board uses two widths: the 142 mm boards are fixed underneath and the 70 mm boards go on top. Each 70 mm top board overlaps the 142 mm boards beneath it by 15 mm on each side. Each pair of boards (one 142 mm and one 70 mm) covers 182 mm of wall (142 + 70 less two 15 mm overlaps).

Space the 142 mm under-boards 40 mm apart (70 less two 15 mm overlaps). You see the full 70 mm top board and 112 mm of each 142 mm under-board.

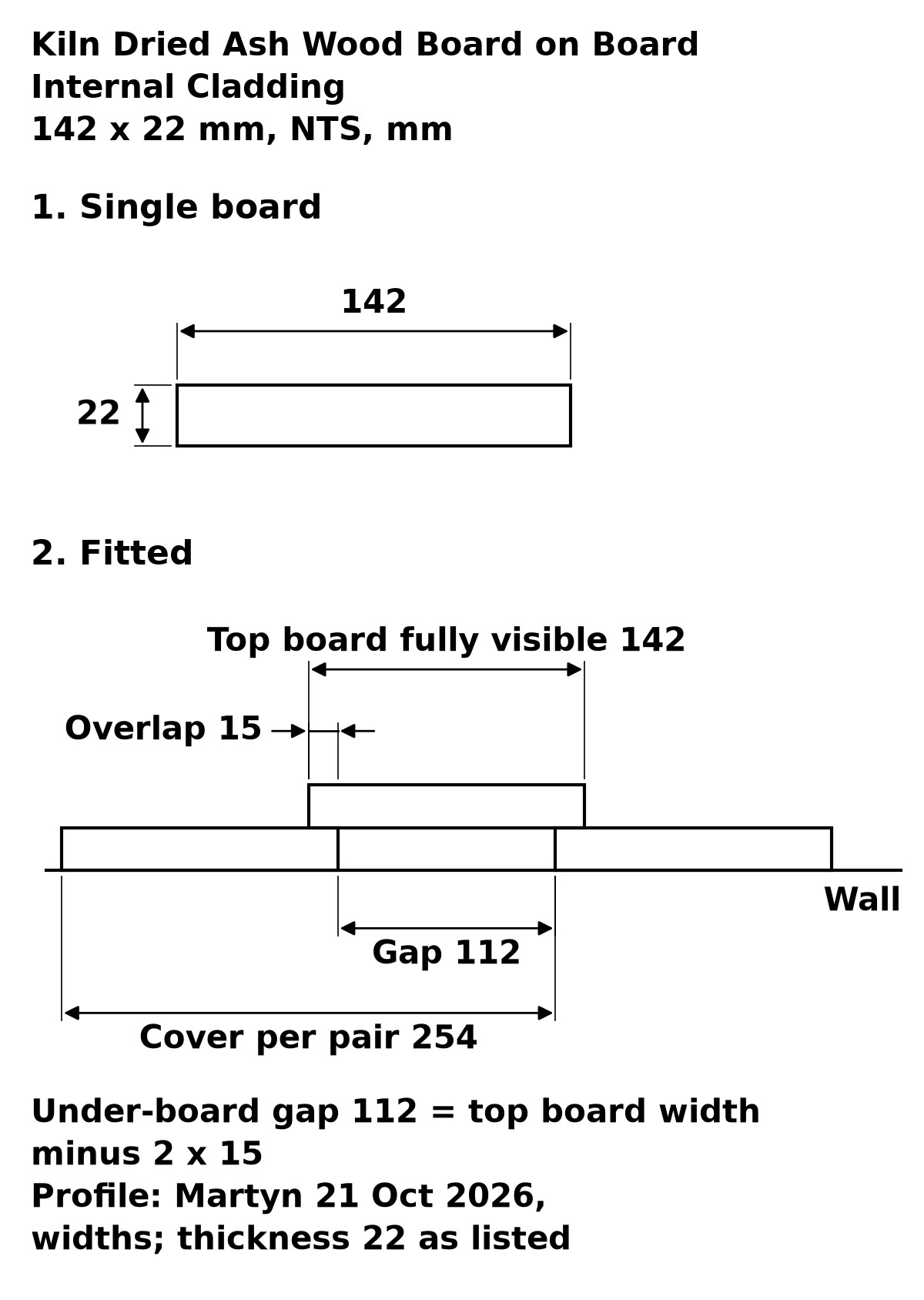

Equal-width option, 142 mm over 142 mm: space the under-boards 112 mm apart (142 less two 15 mm overlaps). Each pair covers 254 mm of wall; you see the full 142 mm top board and 112 mm of each under-board.

Grades and options

• First Grade: completely sap free, with straight grain. Colour may vary.
• Character Grade: knots and wavy grain. Boards can be heavily discoloured.
• End matching (tongue and groove on the board ends) lets you place joints where they fall rather than on a batten, which speeds up fitting and reduces wastage.

Sizes and pricing

• 142/70 x 22 mm (pair covers 182 mm, 15 mm overlaps): Character £41.99 / Character end matched £54.49 / First £54.99 / First end matched £67.99 per m² ex VAT
• 142 x 22 mm (142 over 142: pair covers 254 mm, 15 mm overlaps): Character £41.99 / Character end matched £54.49 / First £54.99 / First end matched £67.99 per m² ex VAT
• Supplied in random lengths between 1200 mm and 3600 mm.
• Set lengths are available for an extra charge using Set lengths (Internal Cladding): surcharge £15.00 per m² ex VAT up to 3500 mm, £18.00 per m² ex VAT above 3500 mm. Add the same number of m² of set lengths as cladding.

Specifications

Finishing and aftercare

Supplied untreated. To protect the surface or hold the colour, see our cladding treatments.

Drawings and downloads

Tap the drawing to open it full size.

Tap the drawing to open it full size.

Good to know

• Natural timber varies: expect some differences in colour and grain from board to board and from the photos.
• Sizes are nominal and can vary slightly with moisture content.
• Not sure? Order up to two cladding samples first.
• Questions? Please contact our Sales Team on 01536 267107.
